Model No. GV-104-2VM
Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
Working temperature:
-65°F (-54°C) to 464°F (240°C)
Diversity of configuration for application
to differential pressure, level and transmitters.
color caps to identify valve function.
100% factory tested.
Heat code traceability.
Material : A479 304, A479 316, A182 GRF 316
Finish: SS Natural, Shot Blast, Zinc Plated
| Part No. | Part Description | Material | Qty. |
| 1 | Body | SS 316 | 1 |
| 2 | Gland Body | SS 316 | 2 |
| 3 | Gland Retainer | SS 304 | 2 |
| 4 | Check Nut | SS 304 | 2 |
| 5 | Spindle | SS 316 | 2 |
| 6 | Gland Packing | P.T.F.E | 4 |
| 7 | Gland Ring | SS 304 | 2 |
| 8 | Gland Washer | SS 304 | 2 |
| 9 | Trim | SS 316 | 2 |
| 10 | Dust Cap | Rubber | 2 |
| 11 | Handle | SS 304 | 2 |
| 12 | Grub Screw | SS | 2 |
| 13 | Lock Pin | SS 304 | 2 |
Note: 1. Packing is optional with graphite for high temperature to 450℃

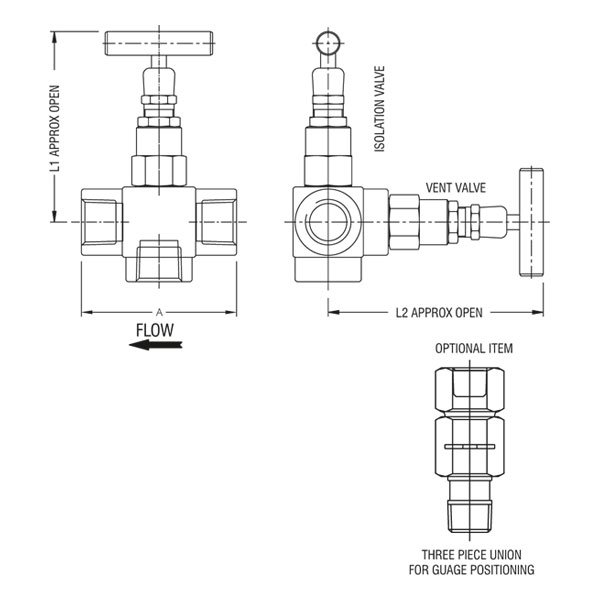

| PROCESS PORT | GAUGE PORT | DRAIN PORT | A | L1 | L2 |
| 1/2" NPT(F) | 1/2" NPT(F) | 1/4" NPT(F) | 68 | 98 | 110 |
| 1/2" NPT(F) | 1/2" NPT(F) | 1/2" NPT(F) | 68 | 98 | 110 |
| 3/4" NPT(F) | 3/4" NPT(F) | 3/4" NPT(F) | 70 | 98 | 110 |
| Gauge Inline with Drain/Vent and Process at Right Angle | |||||
| 1/2" NPT(F) | 1/2" NPT(F) | 1/2" NPT(F) | 68 | 98 | 110 |
| 3/4" NPT(F) | 3/4" NPT(F) | 3/4" NPT(F) | 68 | 98 | 110 |
Note: All dimensions are subject to change without notice All dimensions are in mm unless specified
