Model No. GV-158-S-BV
FEATURES
Maximum working pressure:
3000 psi (206 bar) at 100°F (38°C)
Working temperature:
From(-45°C) to 450°C with PEEK seat
A 316 stainless steel handle covered with vinyl sleeve gives quarter
turn rust-free operation.
Valves with PEEK seats are supplied with sleeves on handles.
A robust pin is to create a positive stop.
The stem +with shoulder provides blowout proof design to
maintain seal integrity at all pressure.
Optional sour gas service conforms to NACE Mr0175.
Ball valves are hydrostatic tested at the full rated pressure and low
pressure pneumatic at 70 psi.

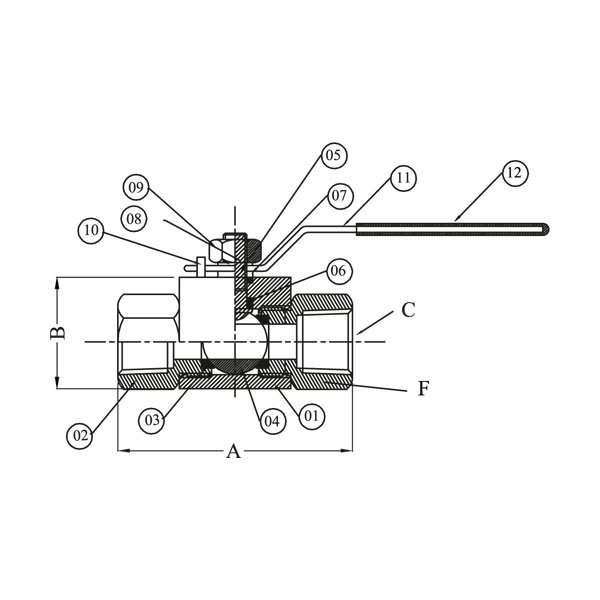

| Sr. No. | Description | Material | Qty |
| 1 | Body | SS316 | 1 |
| 2 | Adaptor | SS316 | 2 |
| 3 | Seat Ring | PTFE | 2 |
| 4 | Ball | SS316 | 1 |
| 5 | Stem | Ss316 | 1 |
| 6 | Gland Seal | PTFE | 2 |
| 7 | Gland Washer | SS316 | 1 |
| 8 | Spring Washer | SS316 | 2 |
| 9 | Lock Nut | SS304 | 1 |
| 10 | Stopper Pin | Plastic | 1 |
| 11 | Handle | SS304 | 1 |
| 12 | Handle Sleeve | PVC | 1 |
| Model | No. | A | B (SQ) | C | F (A/F) |
| GV-158-S-BV-4 | 70 | 32 | 1/4"NPT | (F) | 25 |
| GV-158-S-BV-6 | 70 | 32 | 3/8"NPT | (F) | 25 |
| GV-158-S-BV-8 | 86 | 40 | 1/2"NPT | (F) | 28 |
| GV-158-S-BV-12 | 96 | 45 | 3/4"NPT | (F) | 36 |
| GV-158-S-BV-16 | 114 | 50 | 1"NPT | (F) | 41 |
| GV-158-S-BV-20 | 114 | 50 | 1-1/4"NPT | (F) | 46 |
| GV-158-S-BV-24 | 150 | 75 | 1-1/2"NPT | (F) | 63 |
| GV-158-S-BV-32 | 170 | 95 | 2"NPT | (F) | 76 |
Note: All dimensions are subject to change without notice All dimensions are in mm unless specified
