Reducing Union Tee Tube Fittings

Reducing Union Tee Tube Fittings Distributor in Saudi Arabia

Model No. GV-20-RUT

Reducing Union Tee Tube Fittings Distributor in Saudi Arabia, GV-20-RUT
Reducing Union Tee Tube Fittings Distributor in Saudi Arabia

INCH OD Tubes

Model No. T Tube OD Tx Tube OD A Ax Ay C Cx D Dx E min. F A/F G A/F Gx A/F H Hx Hy
GV-20-RUT-6/6/4 3/8 1/4 61 30.5 29 19.3 17.8 16.8 15.3 4.8 16 17 14 46.2 23.1 21.6
GV-20-RUT-8/8/4 1/2 1/4 72.2 36 31.8 21.8 17.8 22.9 15.3 4.8 20.5 22 14 51.8 25.9 24.4
GV-20-RUT-8/8/6 1/2 3/8 72.2 36 33.3 21.8 19.3 22.9 16.8 7.1 20.5 22 17 51.8 25.9 25.9
GV-20-RUT-12/12/6 3/4 3/8 79.8 39.9 37 21.8 19.3 24.4 16.8 7.1 27 28.5 17 59.4 29.7 29.7
GV-20-RUT-12/12/8 3/4 1/2 79.8 39.9 39.9 21.8 21.8 24.4 22.9 10.4 27 28.5 22 59.4 29.7 29.7
GV-20-RUT-16/16/6 1 3/8 98 49 41.9 26.4 19.3 31.2 16.8 7.1 36 38 17 73.6 36.8 34.5
GV-20-RUT-16/16/8 1 1/2 98 49 44.7 26.4 22.9 31.2 21.8 10.4 36 38 22 73.6 36.8 34.5
GV-20-RUT-16/16/12 1 3/4 98 49 44.7 26.4 24.4 31.2 24.4 15.8 36 38 28.5 73.6 36.8 34.5
GV-20-RUT-20/20/16 1.1/4 1 135.6 67.8 55.1 38.9 26.4 41.2 31.2 22.3 46 50 38 91.4 45.7 42.9
GV-20-RUT-24/24/16 1.1/2 1 157.5 78.7 60 44.7 26.4 50 31.2 22.3 55 57 38 103.2 51.6 47.8

INCH OD Tubes

Model No. T Tube OD Tx Tube OD A Ax Ay C Cx D Dx E min. F A/F G A/F Gx A/F H Hx Hy
GV-20-RUT-6/4/6 3/8 1/4 59.4 30.5 29 19.3 17.8 16.8 15.3 4.8 16 17 14 44.7 23.1 21.6
GV-20-RUT-8/4/8 1/2 1/4 67.7 36 31.7 21.8 17.8 22.9 15.3 4.8 20.5 22 14 50.2 25.9 24.3
GV-20-RUT-8/6/8 1/2 3/8 69.3 36 33.3 21.8 19.3 22.9 16.8 7.1 20.5 22 17 51.8 25.9 25.9
GV-20-RUT-12/6/12 3/4 3/8 77 39.9 37.1 21.8 19.3 24.4 16.8 7.1 27 28.5 17 59.4 29.7 29.7
GV-20-RUT-12/8/12 3/4 1/2 79.8 39.9 39.9 21.8 21.8 24.4 22.9 10.4 27 28.5 22 59.4 29.7 29.7
GV-20-RUT-16/6/16 1 3/8 98.9 49 41.9 26.4 19.3 31.2 16.8 7.1 36 38 17 71.3 36.8 34.5
GV-20-RUT-16/8/16 1 1/2 93.7 49 44.7 26.4 21.8 31.2 21.8 10.4 36 38 22 71.3 36.8 34.5
GV-20-RUT-16/12/16 1 3/4 93.7 49 44.7 26.4 21.8 31.2 24.4 15.8 36 38 28.5 71.3 36.8 34.5
GV-20-RUT-20/16/20 1.1/4 1 119.6 67.8 53 38.9 26.4 41.2 31.2 18.2 46 50 38 85.3 45.7 40.8
GV-20-RUT-24/20/24 1.1/2 1 150.9 78.7 72.9 45.2 38.9 50 41.3 27.6 55 57 38 101.6 50.8 50.8



INCH OD Tubes

Model No. T Tube OD Tx Tube OD A Ax Ay C Cx D Dx E min. F A/F G A/F Gx A/F H Hx Hy
GV-20-RUT-6/4/4 3/8 1/4 59.6 30.6 29 19.3 17.8 16.8 15.3 4.8 16 17 14 44.8 23.2 21.6
GV-20-RUT-8/4/4 1/2 1/4 67.7 36 31.7 21.8 17.8 22.9 15.3 4.8 20.5 22 14 50.2 25.9 24.3
GV-20-RUT-8/6/6 1/2 3/8 69.3 36 33.2 21.8 19.3 22.9 16.8 7.1 20.5 22 17 51.8 25.9 25.9
GV-20-RUT-12/6/6 3/4 3/8 77 38.9 37 21.8 19.3 24.4 16.8 7.1 27 28.5 17 59.4 29.7 29.7
GV-20-RUT-12/8/8 3/4 1/2 79.8 39.9 39.9 21.8 21.8 24.4 22.9 10.4 27 28.5 22 59.4 29.7 29.7
GV-20-RUT-16/6/6 1 3/8 99.9 39.9 41.9 26.4 19.3 31.2 16.8 7.1 36 38 17 71.3 36.8 34.5
GV-20-RUT-16/8/8 1 1/2 93.7 49 44.7 26.4 22.9 31.2 21.8 10.4 36 38 22 71.3 36.8 34.5
GV-20-RUT-16/12/12 1 3/4 93.7 49 44.7 26.4 24.4 31.2 24.4 15.8 36 38 28.5 71.3 36.8 34.5
GV-20-RUT-20/16/16 1.1/4 1 122.9 67.8 55.1 38.9 26.4 41.2 31.2 22.3 46 50 38 88.6 45.7 42.9
GV-20-RUT-24/16/16 1.1/2 1 138.7 78.7 60 44.7 26.4 50 31.2 22.3 50 57 38 99.4 51.6 47.8

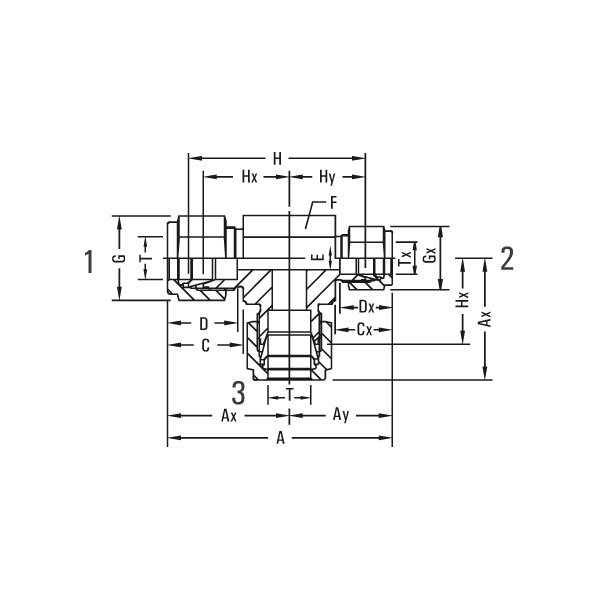

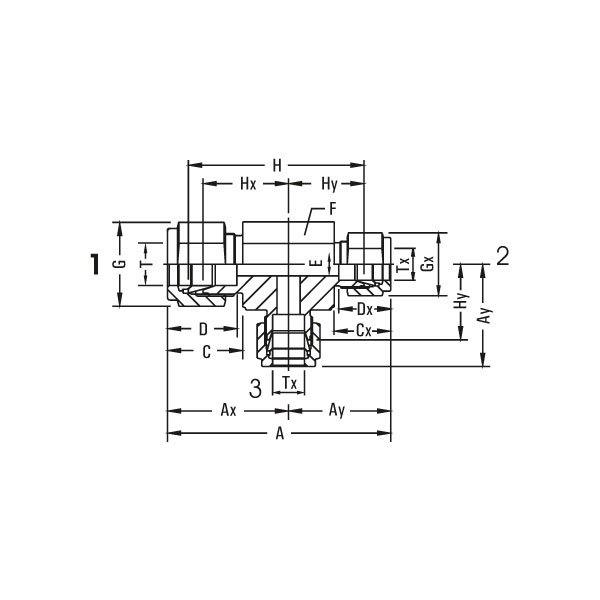

NOTE: 1. The order of the sizes is as per the designation (1-2-3) in figure shown above

NOTE:The combinations shown above are representative of various possibilities. Other combinations not shown are also available. Please consult us.

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified

Al Jazira Advanced Trading deliver a leak-tight, gas-tight seal in an easy-to-install, disassemble, and reassemble form. The robust tube grip with patented, two-ferrule technology is resistant to vibration fatigue and withstands high pressures and temperature extremes

Tube Fittings has been designed for use in instrumentations, process & control system, analyses and environment employed in chemical, petroleum, power generating, pulp & paper plants. GLOBAL Valves tube fitting has also found special application in other fields where high-pressure tube fitting has also found special application in other fields where high-pressure tube fittings are required. If more specific information, including heat code traceability, is required GLOBAL Valves will provide details. Stainless steel Tubefit Engineers tube fitting work reliably on both seamless & welded - redrawn, fully, annealed type tubing.
