Model No. GV-26-R
INCH OD Tubes

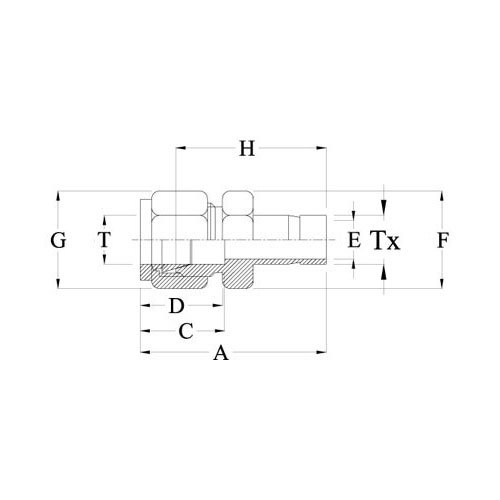

| Model No. | T Tube OD | Tx Tube OD | A | C | D | E min. | F A/F | G A/F | H |
| GV-26-R-2-2 | 1/8 | 1/8 | 33.5 | 15.3 | 12.7 | 2 | 11 | 11 | 26.9 |
| GV-26-R-2-4 | 1/8 | 1/4 | 36.1 | 15.3 | 12.7 | 2.3 | 11 | 11 | 29.5 |
| GV-26-R-2-6 | 1/8 | 3/8 | 37.6 | 15.3 | 12.7 | 2.3 | 11 | 11 | 31 |
| GV-26-R-2-8 | 1/8 | 1/2 | 44.2 | 15.3 | 12.7 | 2.3 | 14 | 11 | 37.6 |
| GV-26-R-4-2 | 1/4 | 1/8 | 36.8 | 17.8 | 15.3 | 2 | 12.7 | 14 | 29.5 |
| GV-26-R-4-4 | 1/4 | 1/4 | 39.1 | 17.8 | 15.3 | 4.8 | 12.7 | 14 | 31.8 |
| GV-26-R-4-6 | 1/4 | 3/8 | 40.6 | 17.8 | 15.3 | 4.8 | 12.7 | 14 | 33.3 |
| GV-26-R-4-8 | 1/4 | 1/2 | 46.2 | 17.8 | 15.3 | 4.8 | 14 | 14 | 38.9 |
| GV-26-R-4-12 | 1/4 | 3/4 | 47.8 | 17.8 | 15.3 | 4.8 | 20.5 | 14 | 40.4 |
| GV-26-R-6-4 | 3/8 | 1/4 | 41.4 | 19.3 | 16.8 | 4.8 | 16 | 17 | 34 |
| GV-26-R-6-6 | 3/8 | 3/8 | 43.2 | 19.3 | 16.8 | 7 | 16 | 17 | 35.8 |
| GV-26-R-6-8 | 3/8 | 1/2 | 48.5 | 19.3 | 16.8 | 7 | 16 | 17 | 41.1 |
| GV-26-R-6-12 | 3/8 | 3/4 | 50.3 | 19.3 | 16.8 | 7 | 16 | 17 | 42.9 |
| GV-26-R-8-4 | 1/2 | 1/4 | 45 | 21.8 | 22.9 | 4.8 | 20.5 | 22 | 34.8 |
| GV-26-R-8-6 | 1/2 | 3/8 | 46.7 | 21.8 | 22.9 | 7 | 20.5 | 22 | 36.6 |
| GV-26-R-8-8 | 1/2 | 1/2 | 52.3 | 21.8 | 22.9 | 10 | 20.5 | 22 | 42.2 |
| GV-26-R-8-12 | 1/2 | 3/4 | 53.8 | 21.8 | 22.9 | 10 | 22 | 22 | 43.7 |
| GV-26-R-8-16 | 1/2 | 1 | 60.2 | 21.8 | 22.9 | 10 | 27 | 22 | 50 |
| GV-26-R-12-8 | 3/4 | 1/2 | 54.6 | 21.8 | 24.4 | 10 | 27 | 28 | 44.5 |
| GV-26-R-12-16 | 3/4 | 1 | 62.5 | 21.8 | 24.4 | 16 | 27 | 28 | 52.3 |
METRIC OD Tubes
| Model No. | T Tube OD | Tx Tube OD | A | C | D | E min. | F A/F | G A/F | H |
| GV-26-R-3m-3.2 | 3 | 3.2 | 33.5 | 15.3 | 12.7 | 2 | 11 | 11 | 26.9 |
| GV-26-R-3m-6.35 | 3 | 6.35 | 36.1 | 15.3 | 12.7 | 2.2 | 12.7 | 11 | 29.5 |
| GV-26-R-6m-3.2 | 6 | 3.2 | 36.9 | 17.8 | 15.3 | 2.2 | 12.7 | 14 | 29.5 |
| GV-26-R-6m-6.35 | 6 | 6.35 | 39.9 | 17.8 | 15.3 | 4.8 | 12.7 | 14 | 32.5 |
| GV-26-R-6m-9.52 | 6 | 9.52 | 40.7 | 17.8 | 15.3 | 4.8 | 12.7 | 14 | 33.3 |
| GV-26-R-6m-12.7 | 6 | 12.7 | 46.3 | 17.8 | 15.3 | 4.8 | 14 | 14 | 38.9 |
| GV-26-R-8m-9.52 | 8 | 9.52 | 42 | 19.3 | 16.8 | 6.4 | 15 | 16 | 34.5 |
| GV-26-R-8m-12.7 | 8 | 12.7 | 47.6 | 19.3 | 16.8 | 6.4 | 15 | 16 | 40.1 |
| GV-26-R-10m-9.52 | 10 | 9.52 | 44.2 | 19.3 | 16.8 | 6.9 | 18 | 17 | 36.6 |
| GV-26-R-10m-12.7 | 10 | 12.7 | 49.8 | 19.3 | 16.8 | 7.9 | 18 | 17 | 42.2 |
| GV-26-R-12m-12.7 | 12 | 12.7 | 52.3 | 21.8 | 22.9 | 9.4 | 20.5 | 22 | 42.2 |
| GV-26-R-12m-19.05 | 12 | 19.05 | 53.8 | 21.8 | 22.9 | 9.5 | 22 | 22 | 43.7 |
| GV-26-R-18m-19.05 | 18 | 19.05 | 56.1 | 21.8 | 24.4 | 15.1 | 27 | 28 | 46 |
| GV-26-R-18m-25.4 | 18 | 25.4 | 62.4 | 21.8 | 24.4 | 15.1 | 27 | 28 | 52.3 |
| GV-26-R-25m-25.4 | 25 | 25.4 | 69.4 | 26.5 | 31.3 | 20.2 | 36 | 38 | 57.2 |
Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
Al Jazira Advanced Trading deliver a leak-tight, gas-tight seal in an easy-to-install, disassemble, and reassemble form. The robust tube grip with patented, two-ferrule technology is resistant to vibration fatigue and withstands high pressures and temperature extremes
Tube Fittings has been designed for use in instrumentations, process & control system, analyses and environment employed in chemical, petroleum, power generating, pulp & paper plants. GLOBAL Valves tube fitting has also found special application in other fields where high-pressure tube fitting has also found special application in other fields where high-pressure tube fittings are required. If more specific information, including heat code traceability, is required GLOBAL Valves will provide details. Stainless steel Tubefit Engineers tube fitting work reliably on both seamless & welded - redrawn, fully, annealed type tubing.
We are specialized in trading High & Medium Pressure Valves, Needle Valves, Ball Valves, Double Ferrule Fittings, Pipe Fittings, Check Valves, Valves Manifold, Thermowells, Pressure Regulators & allied accessories.
