Model No. GV-4-MC
INCH OD Tubes X Male NPT Threads

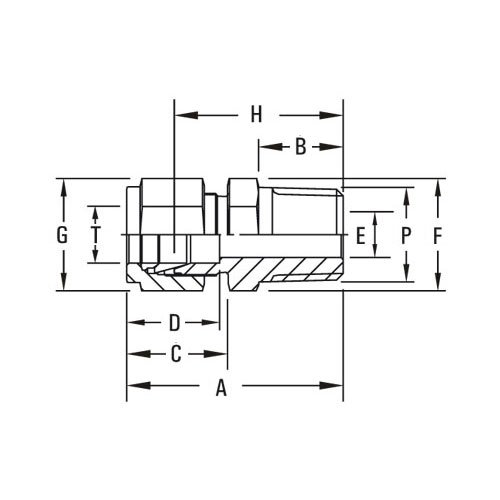

| Model No. | T Tube OD | P NPT Male | A | B | C | D | E min. |
F A/F |
G A/F |
H |
| GV-4-MC-1-1N | 1/16 | 1/16 | 23.9 | 9.6 | 11 | 8.6 | 1.3 | 8 | 8 | 20 |
| GV-4-MC-1-2 | 1/16 | 1/8 | 26.2 | 9.6 | 11 | 8.6 | 1.3 | 11 | 8 | 22.4 |
| GV-4-MC-2-2N | 1/8 | 1/8 | 30.5 | 9.6 | 15.3 | 12.7 | 2.4 | 12.7 | 11 | 23.9 |
| GV-4-MC-2-4N | 1/8 | 1/4 | 35.6 | 14.3 | 15.3 | 12.7 | 2.4 | 14 | 11 | 29 |
| GV-4-MC-4-2N | 1/4 | 1/8 | 32.8 | 9.6 | 17.8 | 15.3 | 4.8 | 12.7 | 14 | 25.4 |
| GV-4-MC-4-4N | 1/4 | 1/4 | 37.8 | 14.3 | 17.8 | 15.3 | 4.8 | 14 | 14 | 30.5 |
| GV-4-MC-4-6N | 1/4 | 3/8 | 38.4 | 14.3 | 17.8 | 15.3 | 4.8 | 19 | 14 | 31 |
| GV-4-MC-4-8N | 1/4 | 1/2 | 44.7 | 19.1 | 17.8 | 15.3 | 4.8 | 22 | 14 | 37.4 |
| GV-4-MC-5-4N | 5/16 | 1/4 | 38.6 | 14.3 | 18.5 | 16.3 | 6.3 | 14 | 16 | 31.2 |
| GV-4-MC-6-2N | 3/8 | 1/8 | 35.3 | 9.6 | 19.3 | 16.8 | 4.8 | 16 | 17 | 27.9 |
| GV-4-MC-6-4N | 3/8 | 1/4 | 39.8 | 14.3 | 19.3 | 16.8 | 7.1 | 16 | 17 | 32.5 |
| GV-4-MC-6-6N | 3/8 | 3/8 | 39.8 | 14.3 | 19.3 | 16.8 | 7.1 | 19 | 17 | 32.5 |
| GV-4-MC-6-8N | 3/8 | 1/2 | 41.2 | 19.1 | 19.3 | 16.8 | 7.1 | 22 | 17 | 38.9 |
| GV-4-MC-8-4N | 1/2 | 1/4 | 43.4 | 14.3 | 21.8 | 22.9 | 7.1 | 20.5 | 22 | 33.3 |
| GV-4-MC-8-6N | 1/2 | 3/8 | 43.4 | 14.3 | 21.8 | 22.9 | 9.6 | 20.5 | 22 | 33.3 |
| GV-4-MC-8-8N | 1/2 | 1/2 | 49 | 19.1 | 21.8 | 22.9 | 10.4 | 22 | 22 | 38.9 |
| GV-4-MC-8-12N | 1/2 | 3/4 | 50.5 | 19.1 | 21.8 | 22.9 | 10.4 | 28 | 22 | 40.4 |
| GV-4-MC-8-16N | 1/2 | 1 | 57.1 | 23.8 | 21.8 | 22.9 | 10.4 | 36 | 22 | 47 |
| GV-4-MC-10-6N | 5/8 | 3/8 | 44.2 | 14.3 | 21.8 | 24.4 | 9.6 | 24 | 25 | 34 |
| GV-4-MC-10-8N | 5/8 | 1/2 | 49 | 19.1 | 21.8 | 24.4 | 10.4 | 24 | 25 | 38.9 |
| GV-4-MC-12-8N | 3/4 | 1/2 | 50.5 | 19.1 | 21.8 | 24.4 | 10.4 | 28 | 28 | 40.4 |
| GV-4-MC-12-12N | 3/4 | 3/4 | 50.5 | 19.1 | 21.8 | 24.4 | 15.8 | 28 | 28 | 40.4 |
| GV-4-MC-12-16N | 3/4 | 1 | 57.1 | 23.8 | 21.8 | 24.4 | 15.8 | 36 | 28 | 47 |
| GV-4-MC-14-12N | 7/8 | 3/4 | 50.5 | 19.1 | 21.8 | 26 | 15.8 | 30 | 32 | 40.4 |
| GV-4-MC-16-8N | 1 | 1/2 | 57.4 | 19.1 | 26.4 | 31.2 | 10.4 | 36 | 38 | 45.2 |
| GV-4-MC-16-12N | 1 | 3/4 | 57.4 | 19.1 | 26.4 | 31.2 | 15.8 | 36 | 38 | 45.2 |
| GV-4-MC-16-16N | 1 | 1 | 62.2 | 23.8 | 26.4 | 31.2 | 22.3 | 36 | 38 | 50 |
| GV-4-MC-20-16N | 1.1/4 | 1 | 77.2 | 23.8 | 38.9 | 41.2 | 22.3 | 46 | 50 | 55.2 |
| GV-4-MC-20-20N | 1.1/4 | 1.1/4 | 77.2 | 23.8 | 38.9 | 41.2 | 27.6 | 46 | 50 | 55.2 |
| GV-4-MC-24-24N | 1.1/2 | 1.1/2 | 88.9 | 26.2 | 45.2 | 50 | 34 | 55 | 57 | 61.7 |
| GV-4-MC-32-32N | 2 | 2 | 113.5 | 26.9 | 62.7 | 67.6 | 46 | 70 | 76 | 76.2 |
METRIC OD Tubes x Male NPT Threads
| Model No. | T Tube OD |
P NPT Male |
A | B | C | D | E min. |
F A/F |
G A/F |
H |
| GV-4-MC-3m-2N | 3 | 1/8 | 30.5 | 9.6 | 15.3 | 12.9 | 2.4 | 12.7 | 11 | 23.9 |
| GV-4-MC-3m-4N | 3 | 1/4 | 35.6 | 14.3 | 15.3 | 12.9 | 2.4 | 14 | 11 | 29 |
| GV-4-MC-6m-2N | 6 | 1/8 | 32.8 | 9.6 | 17.7 | 15.3 | 4.8 | 12.7 | 14 | 25.4 |
| GV-4-MC-6m-4N | 6 | 1/4 | 37.9 | 14.3 | 17.7 | 15.3 | 4.8 | 14 | 14 | 30.5 |
| GV-4-MC-6m-6N | 6 | 3/8 | 38.4 | 14.3 | 17.7 | 15.3 | 4.8 | 19 | 14 | 31 |
| GV-4-MC-6m-8N | 6 | 1/2 | 44.7 | 19.1 | 17.7 | 15.3 | 4.8 | 22 | 14 | 37.3 |
| GV-4-MC-8m-2N | 8 | 1/8 | 34.2 | 9.6 | 18.6 | 16.2 | 4.8 | 14 | 16 | 26.7 |
| GV-4-MC-8m-4N | 8 | 1/4 | 38.7 | 14.3 | 18.6 | 16.2 | 6.3 | 14 | 16 | 31.2 |
| GV-4-MC-8m-6N | 8 | 3/8 | 39.3 | 14.3 | 18.6 | 16.2 | 6.3 | 19 | 16 | 31.8 |
| GV-4-MC-8m-8N | 8 | 1/2 | 45.6 | 19.1 | 18.6 | 16.2 | 6.3 | 22 | 16 | 38.1 |
| GV-4-MC-10m-2N | 10 | 1/8 | 36.3 | 9.6 | 19.5 | 17.2 | 4.8 | 17 | 19 | 28.7 |
| GV-4-MC-10m-4N | 10 | 1/4 | 40.9 | 14.3 | 19.5 | 17.2 | 7.9 | 17 | 19 | 33.3 |
| GV-4-MC-10m-6N | 10 | 3/8 | 40.9 | 14.3 | 19.5 | 17.2 | 7.9 | 19 | 19 | 33.3 |
| GV-4-MC-10m-8N | 10 | 1/2 | 46.5 | 19.1 | 19.5 | 17.2 | 7.9 | 22 | 19 | 38.9 |
| GV-4-MC-12m-4N | 12 | 1/4 | 43.4 | 14.3 | 22 | 22.8 | 7.1 | 20 | 22 | 33.3 |
| GV-4-MC-12m-6N | 12 | 3/8 | 43.4 | 14.3 | 22 | 22.8 | 9.5 | 20 | 22 | 33.3 |
| GV-4-MC-12m-8N | 12 | 1/2 | 49 | 19.1 | 22 | 22.8 | 9.5 | 22 | 22 | 38.9 |
| GV-4-MC-12m-12N | 12 | 3/4 | 50.5 | 19.1 | 22 | 22.8 | 9.5 | 28 | 22 | 40.4 |
| GV-4-MC-12m-16N | 12 | 1 | 57.1 | 23.8 | 22 | 22.8 | 9.5 | 36 | 22 | 47 |
| GV-4-MC-14m-4N | 14 | 1/4 | 44.1 | 14.3 | 22 | 24.4 | 7.1 | 24 | 25 | 34 |
| GV-4-MC-14m-6N | 14 | 3/8 | 44.1 | 14.3 | 22 | 24.4 | 9.5 | 24 | 25 | 34 |
| GV-4-MC-14m-8N | 14 | 1/2 | 49 | 19.1 | 22 | 24.4 | 11.1 | 24 | 25 | 38.9 |
| GV-4-MC-15m-8N | 15 | 1/2 | 49 | 19.1 | 22 | 24.4 | 11.9 | 25 | 25 | 38.9 |
| GV-4-MC-16m-6N | 16 | 3/8 | 44.1 | 14.3 | 22 | 24.4 | 9.5 | 25 | 25 | 34 |
| GV-4-MC-16m-8N | 16 | 1/2 | 49 | 19.1 | 22 | 24.4 | 11.9 | 25 | 25 | 38.9 |
| GV-4-MC-16m-12N | 16 | 3/4 | 50.5 | 19.1 | 22 | 24.4 | 12.7 | 28 | 25 | 40.4 |
| GV-4-MC-18m-8N | 18 | 1/2 | 50.5 | 19.1 | 22 | 24.4 | 11.9 | 28 | 30 | 40.4 |
| GV-4-MC-18m-12N | 18 | 3/4 | 50.5 | 19.1 | 22 | 24.4 | 15.1 | 28 | 30 | 40.4 |
| GV-4-MC-20m-8N | 20 | 1/2 | 52.3 | 19.1 | 22 | 26 | 11.9 | 32 | 32 | 42.2 |
| GV-4-MC-20m-12N | 20 | 3/4 | 52.3 | 19.1 | 22 | 26 | 15.9 | 32 | 32 | 42.2 |
| GV-4-MC-22m-12N | 22 | 3/4 | 52.3 | 19.1 | 22 | 26 | 15.9 | 32 | 32 | 42.2 |
| GV-4-MC-22m-16N | 22 | 1 | 57.1 | 23.8 | 22 | 26 | 18.3 | 36 | 32 | 47 |
| GV-4-MC-25m-8N | 25 | 1/2 | 57.5 | 19.1 | 26.5 | 31.3 | 11.9 | 36 | 38 | 45.2 |
| GV-4-MC-25m-12N | 25 | 3/4 | 57.5 | 19.1 | 26.5 | 31.3 | 15.8 | 36 | 45.2 | 45.2 |
| GV-4-MC-25m-16N | 25 | 1 | 62.3 | 23.8 | 26.5 | 31.3 | 21.8 | 36 | 38 | 50 |
| GV-4-MC-28m-16N | 28 | 1 | 72.4 | 23.8 | 36.6 | 36.6 | 21.8 | 41 | 46 | 51.6 |
| GV-4-MC-28m-20N | 28 | 1.1/4 | 73.1 | 23.8 | 36.6 | 36.6 | 21.8 | 46 | 46 | 52.3 |
| GV-4-MC-30m-20N | 30 | 1.1/4 | 77.2 | 23.8 | 39.2 | 39.6 | 26.2 | 46 | 50 | 55.6 |
| GV-4-MC-32m-20N | 32 | 1.1/4 | 79.6 | 23.8 | 41.6 | 42 | 28.6 | 46 | 50 | 56.6 |
| GV-4-MC-38m-24N | 38 | 1.1/2 | 96.6 | 26.2 | 47.9 | 49.4 | 33.7 | 55 | 57 | 64 |
Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
