Five Valve Manifold, Direct Mount T Type (Pipe x Flange) Distributor in Saudi Arabia

Model No. GV-123-5VMT
For Vent Model No. GV-123-5VMT-V

FEATURES
Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
Working temperature:
-65°F (-54°C) to 464°F (240°C)
Diversity of configuration for application to
differential pressure, level and transmitters.
color caps to identify valve function.
100% factory tested.
Heat code traceability.
Material : A479 304, A479 316, A182 GRF 316
Finish: SS Natural, Shot Blast, Zinc Plated

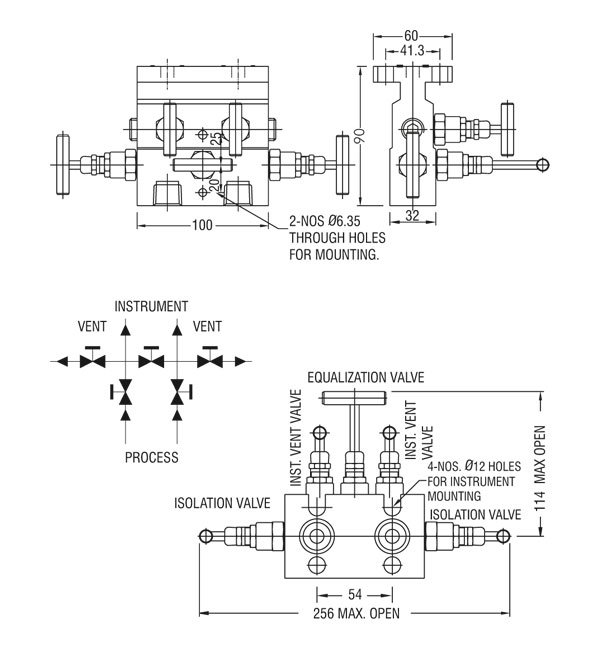

GV-123-5VMT, Five Valve Manifold, Direct Mount T Type - Manifold Valves

Description

Part No. Part Description Material Qty.
1 Body SS 316 1
2 Gland Body SS 316 5
3 Gland Retainer SS 304 5
4 Check Nut SS 304 5
5 Spindle SS 316 5
6 Gland Packing P.T.F.E 10
7 Gland Ring SS 304 5
8 Gland Washer SS 304 5
9 Trim SS 316 5
10 Dust Cap Rubber 5
11 Handle SS 304 5
12 Grub Screw SS 5
13 Lock Pin SS 304 5

Note: 1. Packing is optional with graphite for high temperature to 450℃
