Fitting End Closure Tube Fittings

Fitting End Closure Tube Fittings Distributor in Saudi Arabia

Model No. GV-13-TP

Fitting End Closure Tube Fittings Distributor in Saudi Arabia, GV-13-TP
Fitting End Closure Tube Fittings Distributor in Saudi Arabia

INCH OD Tubes

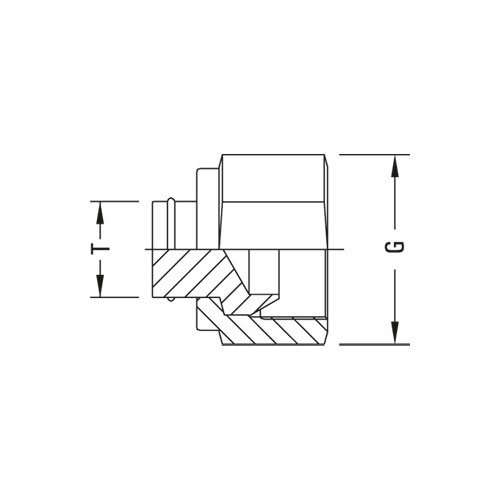

Model No. T Tube OD G A/F
GV-13-TP-1 1/16 8
GV-13-TP-2 1/8 11
GV-13-TP-4 1/4 14
GV-13-TP-5 5/16 16
GV-13-TP-6 3/8 17
GV-13-TP-8 1/2 22
GV-13-TP-10 5/8 25
GV-13-TP-12 3/4 28.5
GV-13-TP-14 7/8 32
GV-13-TP-16 1 38
GV-13-TP-20 1.1/4 50
GV-13-TP-24 1.1/2 57
GV-13-TP-32 2 76

METRIC OD Tubes

Model No. T Tube OD G A/F
GV-13-TP-3m 3 11
GV-13-TP-6m 6 14
GV-13-TP-8m 8 16
GV-13-TP-10m 10 19
GV-13-TP-12m 12 22
GV-13-TP-14m 14 25
GV-13-TP-15m 15 25
GV-13-TP-16m 16 25
GV-13-TP-18m 18 30
GV-13-TP-20m 20 32
GV-13-TP-22m 22 32
GV-13-TP-25m 25 38
GV-13-TP-28m 28 46
GV-13-TP-30m 30 50
GV-13-TP-32m 32 50
GV-13-TP-38m 38 57

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
