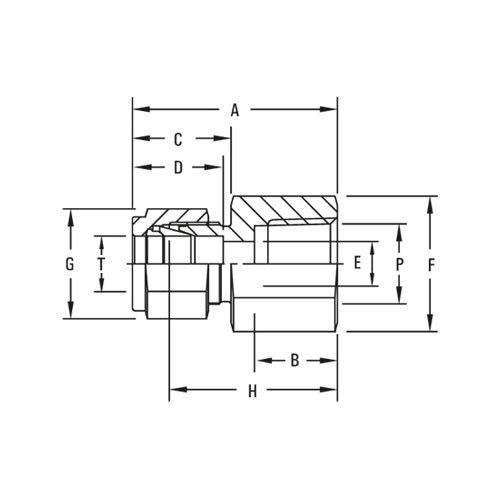

Model No. GV-5-FC
INCH OD Tubes x Female NPT Threads
| Model No. | T Tube OD |
P NPT Male |
A | B | C | D | E min. |
F A/F |
G A/F |
H |
| GV-5-FC-1-1N | 1/16 | 1/16 | 23.6 | 9.9 | 11 | 8.6 | 1.3 | 11 | 8 | 19.8 |
| GV-5-FC-1-2N | 1/16 | 18 | 24.4 | 10.4 | 11 | 8.6 | 1.3 | 14 | 8 | 20.6 |
| GV-5-FC-2-2N | 1/8 | 1/8 | 28.7 | 10.4 | 15.3 | 12.7 | 2.4 | 14 | 11 | 22.1 |
| GV-5-FC-2-4N | 1/8 | 1/4 | 33.6 | 15 | 15.3 | 12.7 | 2.4 | 20.5 | 11 | 26.9 |
| GV-5-FC-4-2N | 1/4 | 1/8 | 31.2 | 9.9 | 17.8 | 15.3 | 4.8 | 14 | 14 | 23.9 |
| GV-5-FC-4-4N | 1/4 | 1/4 | 35.8 | 15 | 17.8 | 15.3 | 4.8 | 20.5 | 14 | 28.5 |
| GV-5-FC-4-6N | 1/4 | 3/8 | 37.6 | 15 | 17.8 | 15.3 | 4.8 | 22 | 14 | 30.2 |
| GV-5-FC-4-8N | 1/4 | 1/2 | 42.4 | 19.8 | 17.8 | 15.3 | 4.8 | 25 | 14 | 35 |
| GV-5-FC-5-2N | 5/16 | 1/8 | 32 | 10.4 | 18.5 | 16.3 | 6.3 | 14 | 16 | 24.6 |
| GV-5-FC-5-4N | 5/16 | 1/4 | 36.8 | 15 | 18.5 | 16.3 | 6.3 | 20.5 | 16 | 29.5 |
| GV-5-FC-6-2N | 3/8 | 1/8 | 32.8 | 10.4 | 19.3 | 16.8 | 7.1 | 16 | 17 | 25.4 |
| GV-5-FC-6-4N | 3/8 | 1/4 | 37.6 | 15 | 19.3 | 16.8 | 7.1 | 20.5 | 17 | 30.2 |
| GV-5-FC-6-6N | 3/8 | 3/8 | 39.1 | 15 | 19.3 | 16.8 | 7.1 | 22 | 17 | 31.8 |
| GV-5-FC-6-8N | 3/8 | 1/2 | 43.9 | 19.8 | 19.3 | 16.8 | 7.1 | 25 | 17 | 36.6 |
| GV-5-FC-8-4N | 1/2 | 1/4 | 40.4 | 15 | 21.8 | 22.9 | 10.4 | 20.5 | 22 | 30.2 |
| GV-5-FC-8-6N | 1/2 | 3/8 | 41.9 | 15 | 21.8 | 22.9 | 10.4 | 22 | 22 | 30.2 |
| GV-5-FC-8-8N | 1/2 | 1/2 | 46.7 | 19.8 | 21.8 | 22.9 | 10.4 | 25 | 22 | 36.6 |
| GV-5-FC-8-12N | 1/2 | 3/4 | 48.3 | 20.6 | 21.8 | 22.9 | 10.4 | 32 | 22 | 38.1 |
| GV-5-FC-10-6N | 5/8 | 3/8 | 41.9 | 15 | 21.8 | 24.4 | 12.7 | 22 | 25 | 31.8 |
| GV-5-FC-10-8N | 5/8 | 1/2 | 46.7 | 19.8 | 21.8 | 24.4 | 12.7 | 25 | 25 | 36.6 |
| GV-5-FC-12-8N | 3/4 | 1/2 | 46.7 | 19.8 | 21.8 | 24.4 | 15.8 | 28 | 28.5 | 36.6 |
| GV-5-FC-12-12N | 3/4 | 3/4 | 48.3 | 20.6 | 21.8 | 24.4 | 15.8 | 36 | 28.5 | 38.1 |
| GV-5-FC-14-12N | 7/8 | 3/4 | 49.8 | 20.6 | 21.8 | 25.9 | 18.3 | 36 | 32 | 39.6 |
| GV-5-FC-16-12N | 1 | 3/4 | 53.4 | 20.6 | 26.4 | 31.2 | 22.3 | 36 | 38 | 41.2 |
| GV-5-FC-16-16N | 1 | 1 | 62.3 | 25.4 | 26.4 | 31.2 | 22.3 | 41 | 38 | 50 |
| GV-5-FC-20-20N | 1 1/4 | 1 1/4 | 74.6 | 25.4 | 38.9 | 41.2 | 27.6 | 55 | 50 | 52.6 |
| GV-5-FC-24-24N | 1 1/2 | 1 1/2 | 83.3 | 27.6 | 45.2 | 50 | 34 | 60 | 60 | 56.2 |
METRIC OD Tubes x Female NPT Threads
| Model No. | T Tube OD |
P NPT Male |
A | B | C | D | E min. |
F A/F |
G A/F |
H |
| GV-5-FC-3m-4N | 3 | 1/4 | 35.3 | 12.9 | 15.3 | 12.9 | 2.4 | 20.5 | 11 | 28.7 |
| GV-5-FC-6m-4N | 6 | 1/4 | 37.6 | 12.9 | 17.7 | 15.3 | 4.8 | 20.5 | 14 | 30.2 |
| GV-5-FC-6m-6N | 6 | 3/8 | 37.6 | 14.1 | 17.7 | 15.3 | 4.8 | 22 | 14 | 30.2 |
| GV-5-FC-6m-8N | 6 | 1/2 | 43.5 | 18.9 | 17.7 | 15.3 | 4.8 | 25 | 14 | 36.1 |
| GV-5-FC-8m-4N | 8 | 1/4 | 38.5 | 12.9 | 18.6 | 16.2 | 5.5 | 20.5 | 16 | 31 |
| GV-5-FC-8m-6N | 8 | 3/8 | 36.2 | 14.1 | 18.6 | 16.2 | 6.5 | 22 | 16 | 28.7 |
| GV-5-FC-8m-8N | 8 | 1/2 | 41 | 18.9 | 18.6 | 16.2 | 7.1 | 25 | 16 | 33.5 |
| GV-5-FC-10m-4N | 10 | 1/4 | 39.4 | 19.5 | 19.5 | 17.2 | 5.5 | 20.5 | 19 | 31.8 |
| GV-5-FC-10m-6N | 10 | 3/8 | 38.8 | 19.5 | 19.5 | 17.2 | 6.5 | 22 | 19 | 31.2 |
| GV-5-FC-10m-8N | 10 | 1/2 | 42.1 | 19.5 | 19.5 | 17.2 | 7.1 | 25 | 19 | 34.5 |
| GV-5-FC-12m-4N | 12 | 1/4 | 41.9 | 12.9 | 22 | 22.8 | 5.5 | 20.5 | 22 | 31.8 |
| GV-5-FC-12m-6N | 12 | 3/8 | 44.4 | 14.1 | 22 | 22.8 | 6.5 | 22 | 22 | 34.3 |
| GV-5-FC-12m-8N | 12 | 1/2 | 48.2 | 18.9 | 22 | 22.8 | 7.1 | 25 | 22 | 38.1 |
Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
