Double Block & Bleed Gauge Manifold Valves Distributor in Saudi Arabia

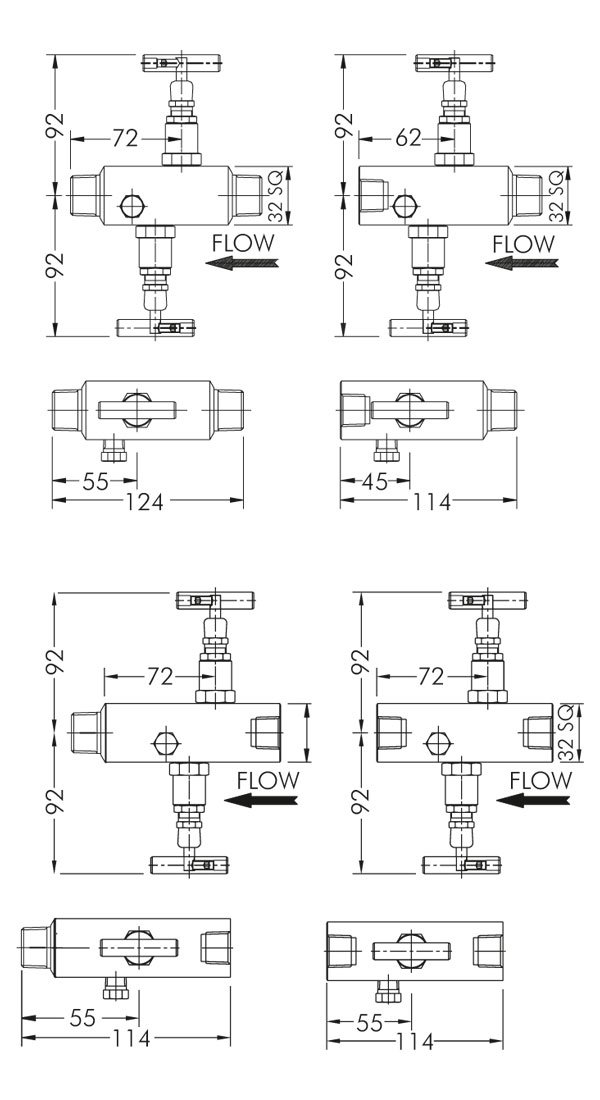

Model No. GV-103-DBB

Maximum working pressure :
6000 psi (414bar) at 100°F (38°C)
Working Temperature :
-65°F (-54°C) TO 464°F (240°C)
Double block & bleed manifolds are designed to mount to pressure guages, pressure transmitters and pressure switches.
A compact design is to provide significant savings on space, weight, installation and cost.
standard vent port 1/4”NPT female.
working pressure
100% factory test
Material traceability
Finish : SS Natural, Shot Blast, Zinc Plated

Description

Part No.	Part Description	Material	Qty.
1	Body	SS 316	1
2	Gland Body	SS 316	2
3	Gland Retainer	SS 304	2
4	Check Nut	SS 304	2
5	Spindle	SS 316	2
6	Gland Packing	P.T.F.E	4
7	Gland Ring	SS 304	2
8	Gland Washer	SS 304	2
9	Trim	SS 316	2
10	Dust Cap	Rubber	2
11	Handle	SS 304	2
12	Grub Screw	SS	2
13	Lock Pin	SS 304	2

Note: 1. Packing is optional with graphite for high temperature to 450℃

6000 PSI

Model No.	(Inlet X Outlet)
GV-103-DBB-8-M/M	1/2" NPT(M) x 1/2" NPT(M)
GV-103-DBB-8-M/F	1/2" NPT(M) x 1/2" NPT(F)
GV-103-DBB-8-F/M	1/2" NPT(F) x 1/2" NPT(M)
GV-103-DBB-8-F/F	1/2" NPT(F) x 1/2" NPT(F)
GV-103-DBB-12-8-M/F	3/4" NPT(M) x 1/2" NPT(F)

Note: All dimensions are subject to change without notice All dimensions are in mm unless specified

Al Jazira Advanced Trading deliver a leak-tight, gas-tight seal in an easy-to-install, disassemble, and reassemble form. The robust tube grip with patented, two-ferrule technology is resistant to vibration fatigue and withstands high pressures and temperature extremes
