Model No. GV-142-CV-10K
FEATURES
Maximum Working Pressure:
10000 psi (710 bar)at 100°F (38°C)
Working Temperature :
-10°F (-23°C) to 392°F (200°C)
SS304/SS316 Stainless Steel
Cracking Pressure :
1psi (.06 bar) to 25psi (1.7 bar)
Viton O-rings
Sizes: 1/8”~1” pipe thread

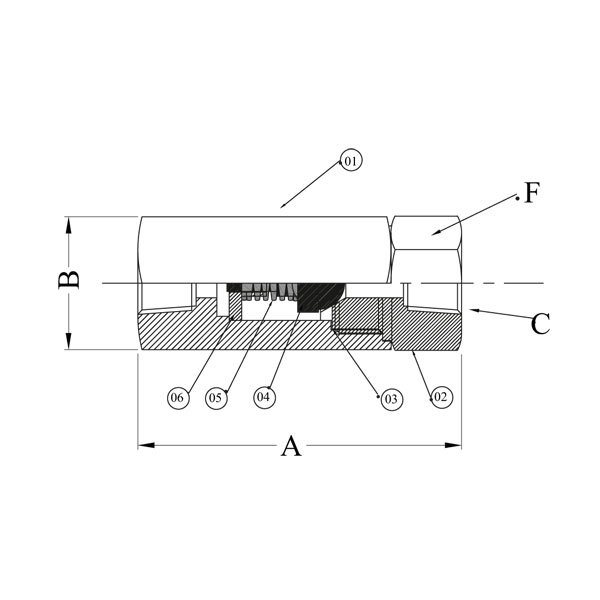

| Model No. | A | B (A/F) | C | F (A/F) |
| GV-142-CV-4 | 76 | 32 | 1/4"NPT | 28 |
| GV-142-CV-6 | 76 | 32 | 3/8"NPT | 28 |
| GV-142-CV-8 | 88 | 38 | 1/2"NPT | 32 |
| GV-142-CV-12 | 98 | 41 | 3/4"NPT | 38 |
| GV-142-CV-16 | 102 | 46 | 1"NPT | 41 |
*End connections other threads on request
Note: 1. Packing is optional with graphite for high temperature to 450℃
| Sr. No. | Description | Material | Qty |
| 1 | Body | SS316L | 1 |
| 2 | Side Adaptor | SS316L | 1 |
| 3 | Gland Washer | SS316L | 1 |
| 4 | Piston | SS316L | 1 |
| 5 | Spring | SS | 1 |
| 6 | Wheel | SS316L | 1 |
Note: All dimensions are subject to change without notice All dimensions are in mm unless specified
