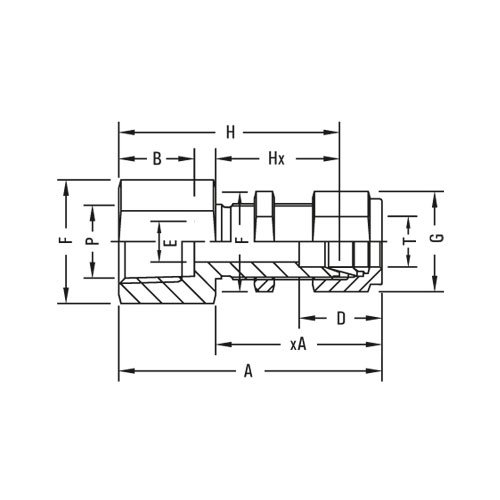

Model No. GV-9-BFC
INCH OD Tubes x Female NPT Threads
| Model No. | T Tube OD |
P NPT Male |
A | Ax | B | D min. |
E | F A/F |
G A/F |
H | Hx | Panel Hole Drill Size |
Max Panel Thickness |
| GV-9-BFC-2-2N | 1/8 | 1/8 | 44.7 | 31.2 | 10.4 | 12.7 | 2.4 | 14 | 11 | 38.1 | 24.6 | 8.3 | 12.7 |
| GV-9-BFC-4-2N | 1/4 | 1/8 | 47 | 33.5 | 10.4 | 15.3 | 4.8 | 16 | 14 | 39.7 | 26.2 | 11.5 | 10.2 |
| GV-9-BFC-4-4N | 1/4 | 1/4 | 51.5 | 33.5 | 15 | 15.3 | 4.8 | 20.5 | 14 | 44.2 | 26.2 | 11.5 | 10.2 |
| GV-9-BFC-6-4N | 3/8 | 1/4 | 54.8 | 36.8 | 15 | 16.8 | 7.1 | 20.5 | 17 | 47.5 | 29.5 | 14.7 | 11.2 |
| GV-9-BFC-8-6N | 1/2 | 3/8 | 61.7 | 41.9 | 15 | 22.9 | 10.4 | 24 | 22 | 51.6 | 31 | 19.5 | 12.7 |
| GV-9-BFC-8-8N | 1/2 | 1/2 | 66.7 | 41.9 | 19.8 | 22.9 | 10.4 | 27 | 22 | 56.6 | 31 | 19.5 | 12.7 |
| GV-9-BFC-10-8N | 5/8 | 1/2 | 67.6 | 42.7 | 19.8 | 22.9 | 12.7 | 27 | 25 | 57.4 | 32.5 | 22.6 | 12.7 |
| GV-9-BFC-12-8N | 3/4 | 1/2 | 72.4 | 47.5 | 19.8 | 24.4 | 16 | 36 | 28 | 62.3 | 37.4 | 25.8 | 16.8 |
| GV-9-BFC-12-12N | 3/4 | 3/4 | 74.7 | 47.5 | 20.6 | 24.4 | 16 | 36 | 28 | 64.3 | 37.4 | 25.8 | 16.8 |
| GV-9-BFC-16-12N | 1 | 3/4 | 84.3 | 57.4 | 20.6 | 31.2 | 16 | 36 | 38 | 72.1 | 45.2 | 33.7 | 19 |
| GV-9-BFC-16-16N | 1 | 1 | 93.2 | 57.4 | 25.4 | 31.2 | 22.2 | 41 | 38 | 81 | 45.2 | 33.7 | 19 |
| GV-9-BFC-20-20N | 1.1/4 | 1.1/4 | 105.7 | 69.9 | 25.4 | 41.2 | 27.6 | 50 | 50 | 83.5 | 47.7 | 41.6 | 19 |
| GV-9-BFC-24-24N | 1.1/2 | 1.1/2 | 144.5 | 76.4 | 27.6 | 50 | 34 | 60 | 57 | 87.4 | 49.3 | 49.6 | 19 |
Metric OD Tubes x Female NPT Threads
| Model No. | T Tube OD |
P NPT Male |
A | Ax | B | D min. |
E | F A/F |
G A/F |
H | Hx | Panel Hole Drill Size |
Max Panel Thickness |
| GV-9-BFC-3m-2N | 3 | 1/8 | 44.7 | 31.2 | 10.4 | 12.9 | 2.4 | 14 | 11 | 38.1 | 24.6 | 8.3 | 12.7 |
| GV-9-BFC-6m-4N | 6 | 1/4 | 51.6 | 33.6 | 15 | 15.3 | 4.8 | 20.5 | 14 | 44.2 | 26.2 | 11.5 | 10.2 |
| GV-9-BFC-10m-4N | 10 | 3/8 | 56.8 | 37 | 15 | 17.2 | 7.9 | 22 | 19 | 49.2 | 29.4 | 16.3 | 11.2 |
| GV-9-BFC-12m-6N | 12 | 3/8 | 61.8 | 41.9 | 15 | 22.8 | 9.5 | 22 | 22 | 51.7 | 31.8 | 19.5 | 12.7 |
| GV-9-BFC-12m-8N | 12 | 1/2 | 66.7 | 41.9 | 19.8 | 22.8 | 9.5 | 25 | 22 | 56.6 | 31.8 | 19.5 | 12.7 |
| GV-9-BFC-16m-8N | 16 | 1/2 | 67.5 | 42.6 | 20.6 | 24.4 | 12.7 | 25 | 25 | 57.4 | 32.5 | 22.8 | 12.7 |
| GV-9-BFC-22m-12N | 22 | 3/4 | 79.9 | 53 | 20.6 | 26 | 15.8 | 35 | 35 | 69.8 | 42.9 | 29 | 19 |
| GV-9-BFC-25m-12N | 25 | 3/4 | 84.3 | 57.4 | 20.6 | 31.2 | 15.8 | 35 | 38 | 72.1 | 45.2 | 33.7 | 19 |
| GV-9-BFC-25m-16N | 25 | 1 | 93.2 | 57.4 | 25.4 | 31.2 | 22.3 | 35 | 38 | 81 | 45.2 | 33.7 | 19 |
| GV-9-BFC-32m-20N | 32 | 1.1/4 | 105.7 | 69.9 | 25.4 | 42 | 27.6 | 50 | 50 | 83.5 | 44.7 | 41.6 | 19 |
| GV-9-BFC-38m-24N | 38 | 1.1/2 | 114.5 | 76.4 | 27.6 | 49.4 | 33.7 | 60 | 57 | 87.4 | 49.3 | 49.6 | 19 |
Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
