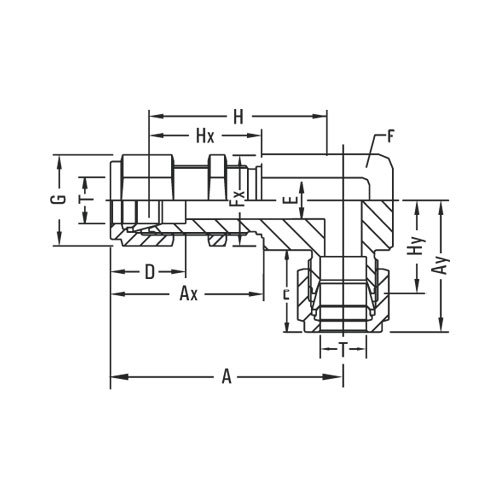

Bulkhead Elbow Tube Fittings Distributor in Saudi Arabia

Model No. GV-21-BE

INCH OD Tubes

Model No.	T Tube OD	A	Ax	Ay	C	D	E min.	F A/F	G A/F	H	Hx	Hy	Panel Hole Drill Size	Max. Panel Thickness
GV-21-BE-2	1/8	43.1	31.2	22.4	15.3	12.7	2.4	11	11	36.5	24.6	15.8	8.3	12.7
GV-21-BE-4	1/4	48.9	33.6	26.9	17.8	15.3	4.8	16	14	41.5	26.2	19.6	11.5	10.1
GV-21-BE-6	3/8	54.1	36.8	30.5	19.3	16.8	7.1	22	17	46.8	29.5	23.2	14.6	11.1
GV-21-BE-8	1/2	63.5	41.9	36	21.8	22.9	10.4	24	22	53.4	31.8	25.9	19.5	12.7
GV-21-BE-12	3/4	75.3	47.5	39.9	21.8	24.4	16	30	29	65.2	37.4	29.7	25.8	16.8
GV-21-BE-16	1	91.8	57.4	49	26.4	31.2	22.3	41	28	79.6	45.2	36.8	33.7	19

METRIC OD Tubes

Model No.	T Tube OD	A	Ax	Ay	C	D	E min.	F A/F	G A/F	H	Hx	Hy	Panel Hole Drill Size	Max. Panel Thickness
GV-21-BE-8m	3	43	31.2	22.3	15.3	12.9	2.4	14	11	36.4	24.6	15.7	8.3	12.7
GV-21-BE-6m	6	49.3	33.6	27	17.7	15.3	4.8	16	14	41.9	26.2	19.6	11.5	10.2
GV-21-BE-8m	8	52.6	36.1	28.8	18.6	16.2	6.3	17	16	45.1	28.6	21.3	13.1	11.2
GV-21-BE-10m	10	56.2	37	31.5	19.5	17.2	7.9	22	19	48.6	29.4	23.9	16.3	11.2
GV-21-BE-12m	12	63	41.9	36	22	22.8	9.5	24	22	52.9	31.8	25.9	19.5	12.7
GV-21-BE-16m	16	66.5	42.6	38	22	24.4	12.7	27	25	56.4	32.5	27.9	22.8	12.7
GV-21-BE-20m	22	85.1	53	44.6	22	26	18.3	36	32	75	42.9	34.5	29	19
GV-21-BE-25m	25	91.8	57.4	49.1	26.4	31.2	22.3	41	38	79.6	45.2	36.8	33.7	19

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified

Al Jazira Advanced Trading deliver a leak-tight, gas-tight seal in an easy-to-install, disassemble, and reassemble form. The robust tube grip with patented, two-ferrule technology is resistant to vibration fatigue and withstands high pressures and temperature extremes

Tube Fittings has been designed for use in instrumentations, process & control system, analyses and environment employed in chemical, petroleum, power generating, pulp & paper plants. GLOBAL Valves tube fitting has also found special application in other fields where high-pressure tube fitting has also found special application in other fields where high-pressure tube fittings are required. If more specific information, including heat code traceability, is required GLOBAL Valves will provide details. Stainless steel Tubefit Engineers tube fitting work reliably on both seamless & welded - redrawn, fully, annealed type tubing.
